Model: 3D FSD-30A
Product Name: Fu Shi Da series 3D vehicle four wheel locator;
Origin: China - Zhuhai:
Registered trademark: FSD
Operating system: genuine WIN8-32 bit, multi language optional, hardware using Lenovo computer, quality assurance.
It can be selected: the column adopts electric lifting structure, and the steel bar is manually adjusted to lift height by default.
The appearance of the product is as follows: (the main color is red and blue).

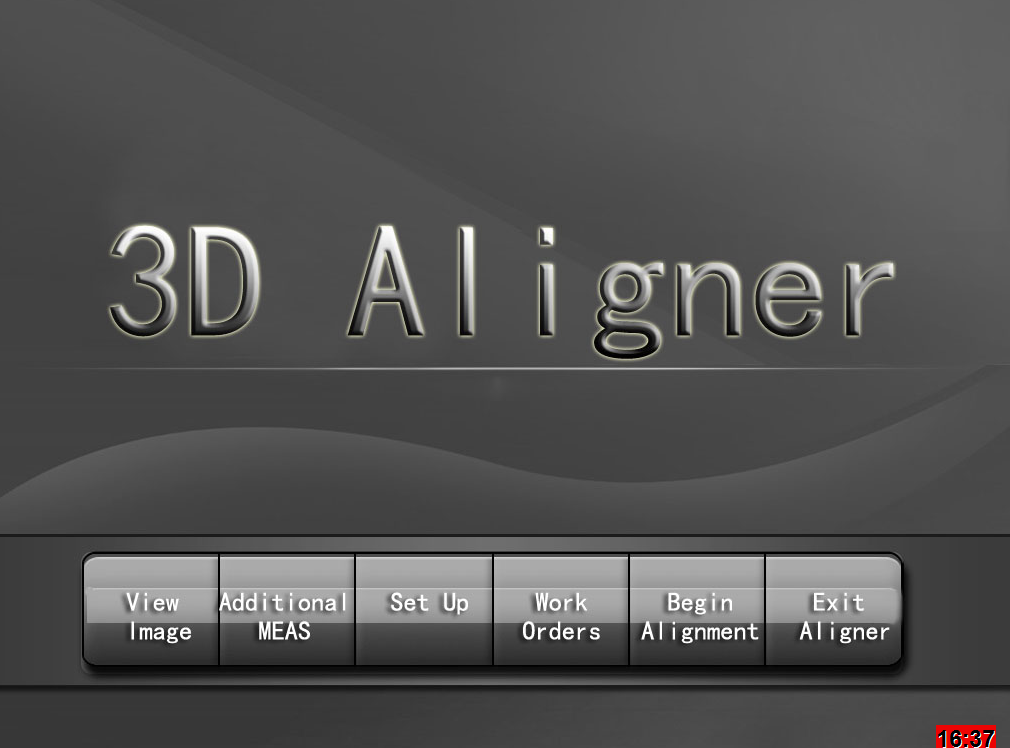

The software patent certificate and operation surface are as follows:
- Product features: the cabinet adopts movable cabinet, convenient installation and low fixed Shidiao column height; the camera uses SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual algorithm technology, the software is easy to quickly read data; 3D dynamic image display operation guidance operation; rolling compensation, short wheelbase, micro distance trolley track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular calibration; Aluminum Alloy. Easy to check the angle of the direction of the base parameters and the front wheel angle and other parameters; super database, free of charge to update the database file once a year; the product through the ISO quality system and the EU CE safety certificationThe main technical parameters are as follows：
| Location parameter | Accuracy (center value) | Accuracy range | Maximum measuring range |
| Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement repeatability±0.01°or0.01mm | |
| Toe | ±0.015° | ±0.01° | ±30° |
| Dip angle | ±0.025° | ±0.01° | ±30° |
| Kingpin inclination | ±0.025° | ±0.01° | ±15° |
| Kingpin inclination | ±0.025° | ±0.01° | ±20° |
| thrust angle | ±0.015° | ±0.01° | ±6° |
| Maximum turning angle | ±0.015° | ±0.01° | ±30° |
| Recession angle | ±0.015° | ±0.01° | ±6° |
| Tread | ±0.25cm | ±0.01° | 3000mm |
| Wheelbase | ±0.25cm | ±0.01° | 8000mm |
| diagonal | ±2mm | ±0.3cm | 12000mm |
| Rolling radius | ±2mm | ±0.3cm | 700mm |
| Product accessory name | Matching number | Product accessory name | Number of parts | Remarks |
| Aluminum alloy Liang Zongcheng | 1 | Cabinet, column assembly | 1 | |
| Aluminum alloy corner plate | 2 | Four point fixture | 4 | |
| Direction fixing bracket | 1 | Front and rear wheel stop | 4 | |
| Computer host | 1 | Monitor | 1 | 18.5inch |
| keybord, mouse | 1 | Whole wire harness | 1 | |
| Liang Zongcheng coupling | 1 | Column seat | 1 | |
| Column cap | 1 | Fixture hanger | 4 |
0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed
0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;
0.3. Measurement accuracy in the industry first-class;
0.4. Software supports a variety of reflective patterns;
0.5. The product has passed ISO quality system certification and export CE certification;
0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function
0.8. The software is easy to operate, easy to use, intuitive 3D display
0.9. National UNPROFOR, remote service system
10. All over the country are equipped with after-sales service outlets, remote technical support
11. Regular return visit system of products, continuous innovation, once a year free update data packets
12. The product is specially designed for the drainage design. It is convenient to check the data
13) free training staff
14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine
15. Automatic calculation of body parameters and rolling compensation body parameters
16. Software intuitive response to the four round of the condition and need to solve the problem of repair
